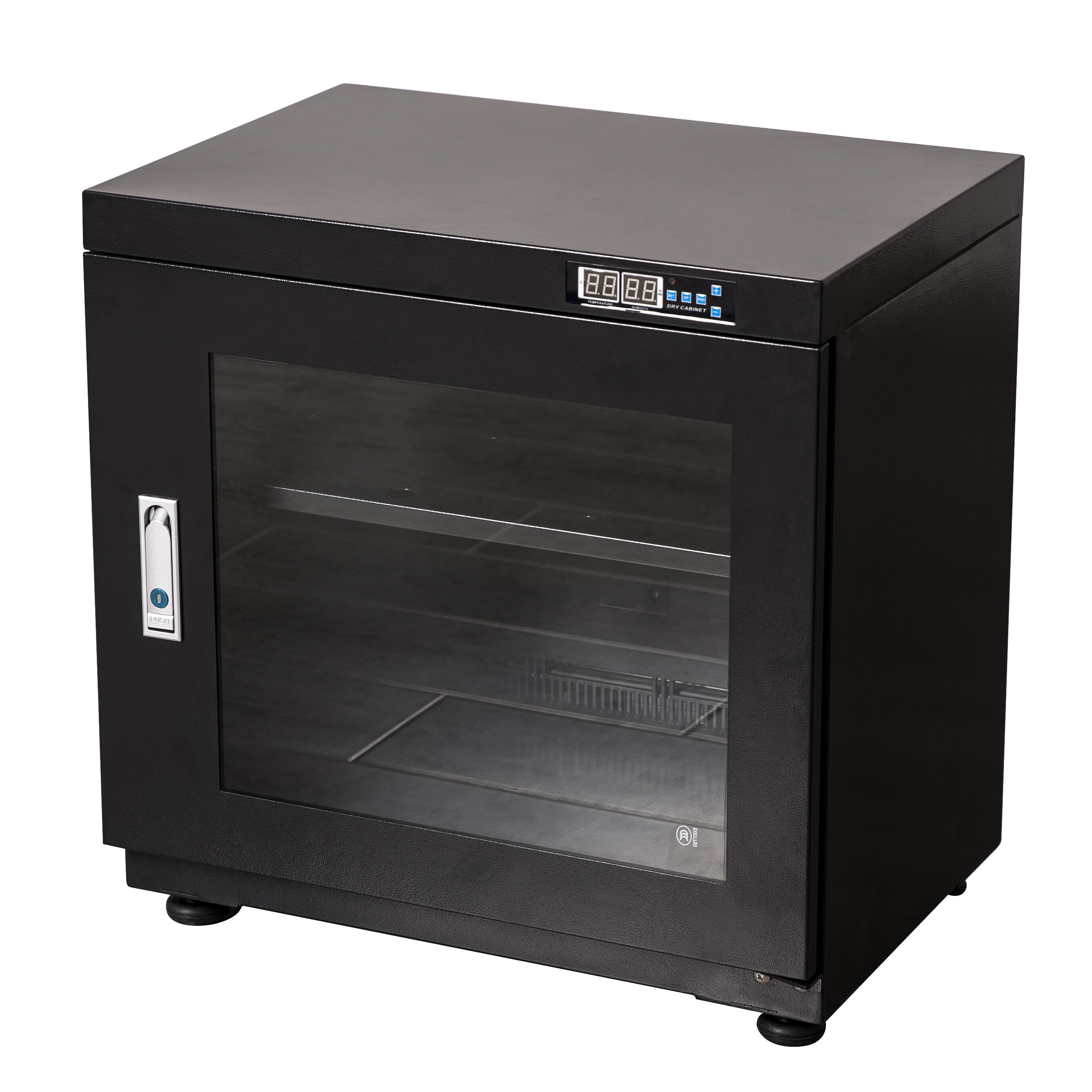

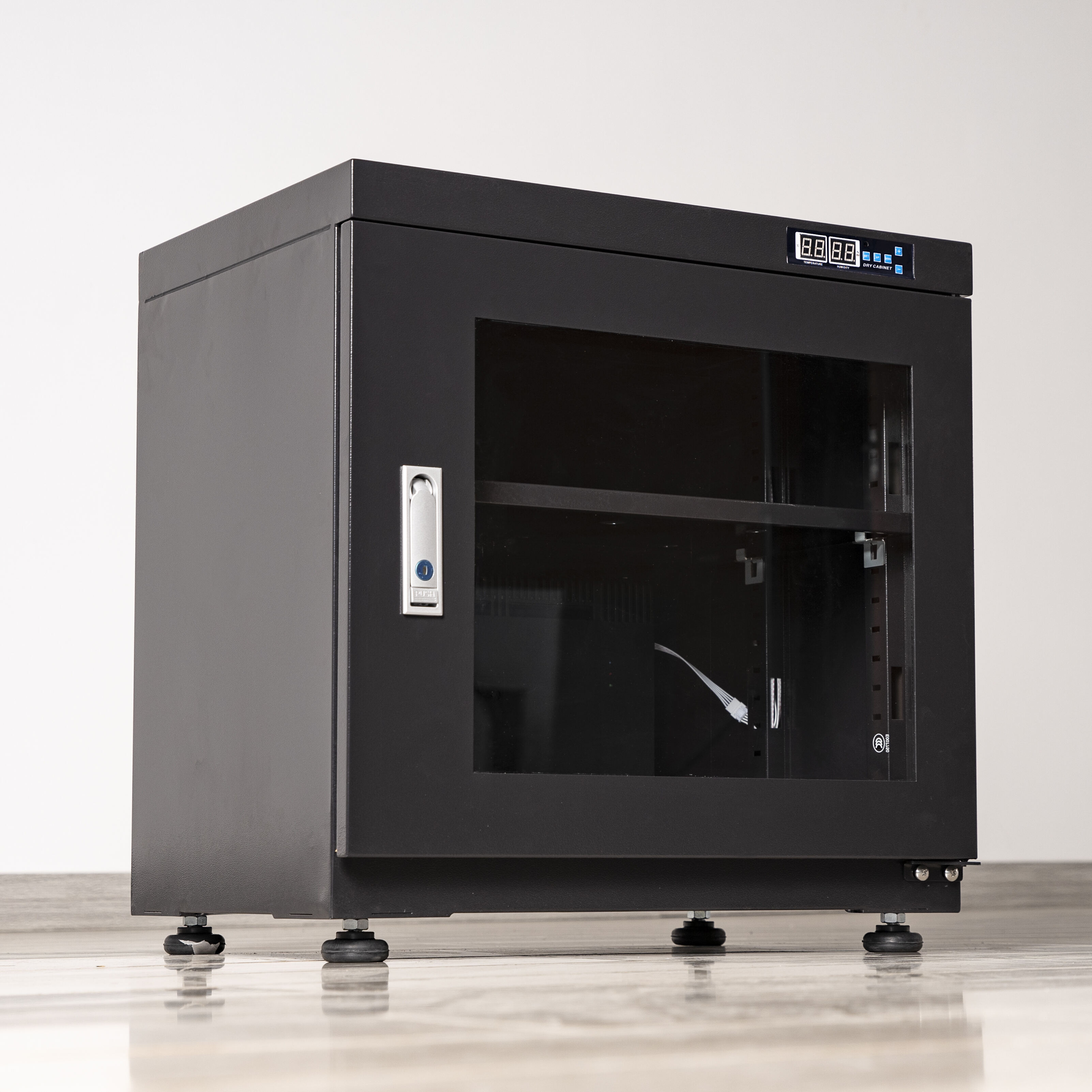

Electronic Moisture Proof Cabinet 100L

Electronic Moisture proof cabinet

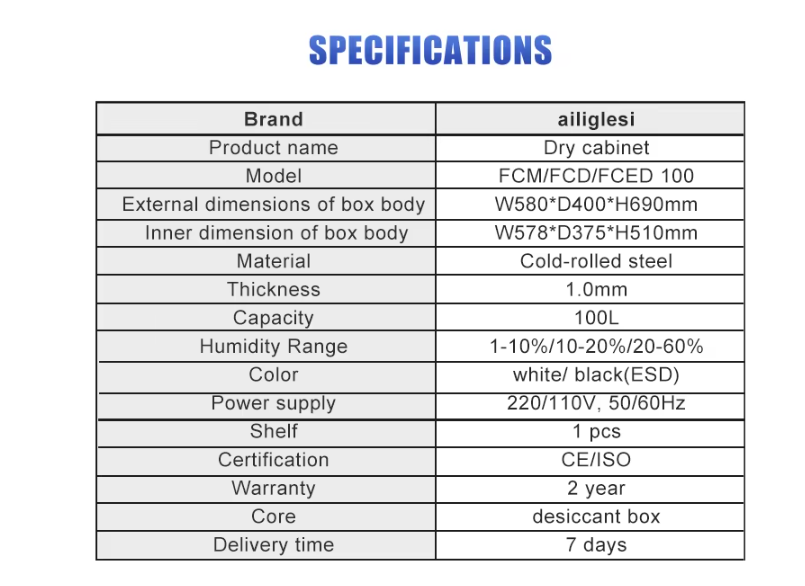

Product detailed parameters

1.Cabinet structure

1.1 The cabinet is made of 1.0mm high-quality steel plate and adopts a high-strength structural design, with good load-bearing performance, no air leakage, and excellent sealing performance.

1.2 The dry cabinet adopts overall surface treatment and powder coating and there is an automatic powder spraying line for production. The product has strong corrosion resistance and is equipped with 360 degree rotating brake wheels at the bottom for easy movement and fixation.

1.3 The ESD dry cabinet the surface of the anti-static dry cabinet is coated with a special conductive powder there is an automatic powder spraying line for production. It has strong corrosion resistance and a surface resistivity of 10⁶-10⁹. The bottom of the cabinet is equipped with 360-degree rotating anti-static casters with brakes for easy movement and fixation.

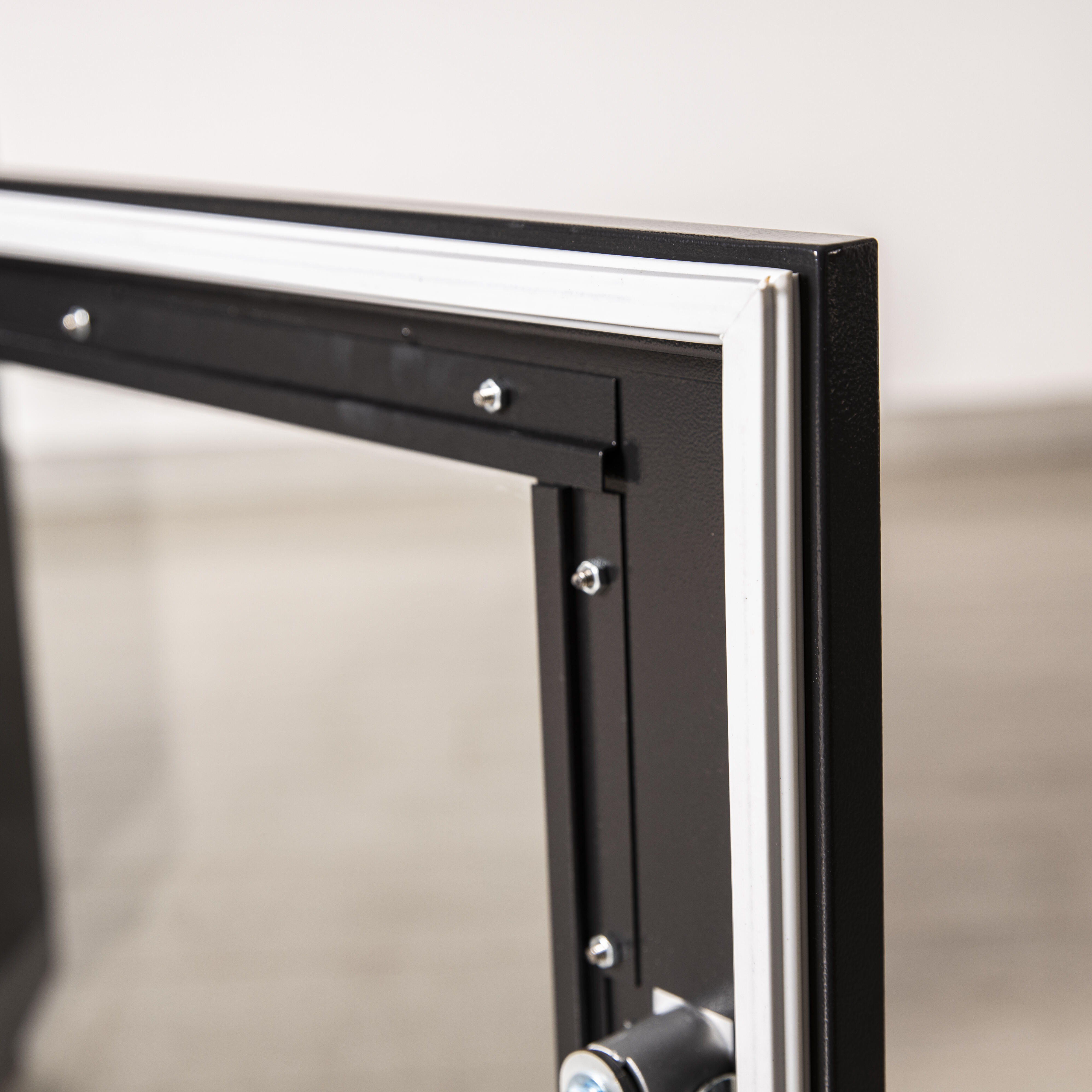

2.Cabinet door window

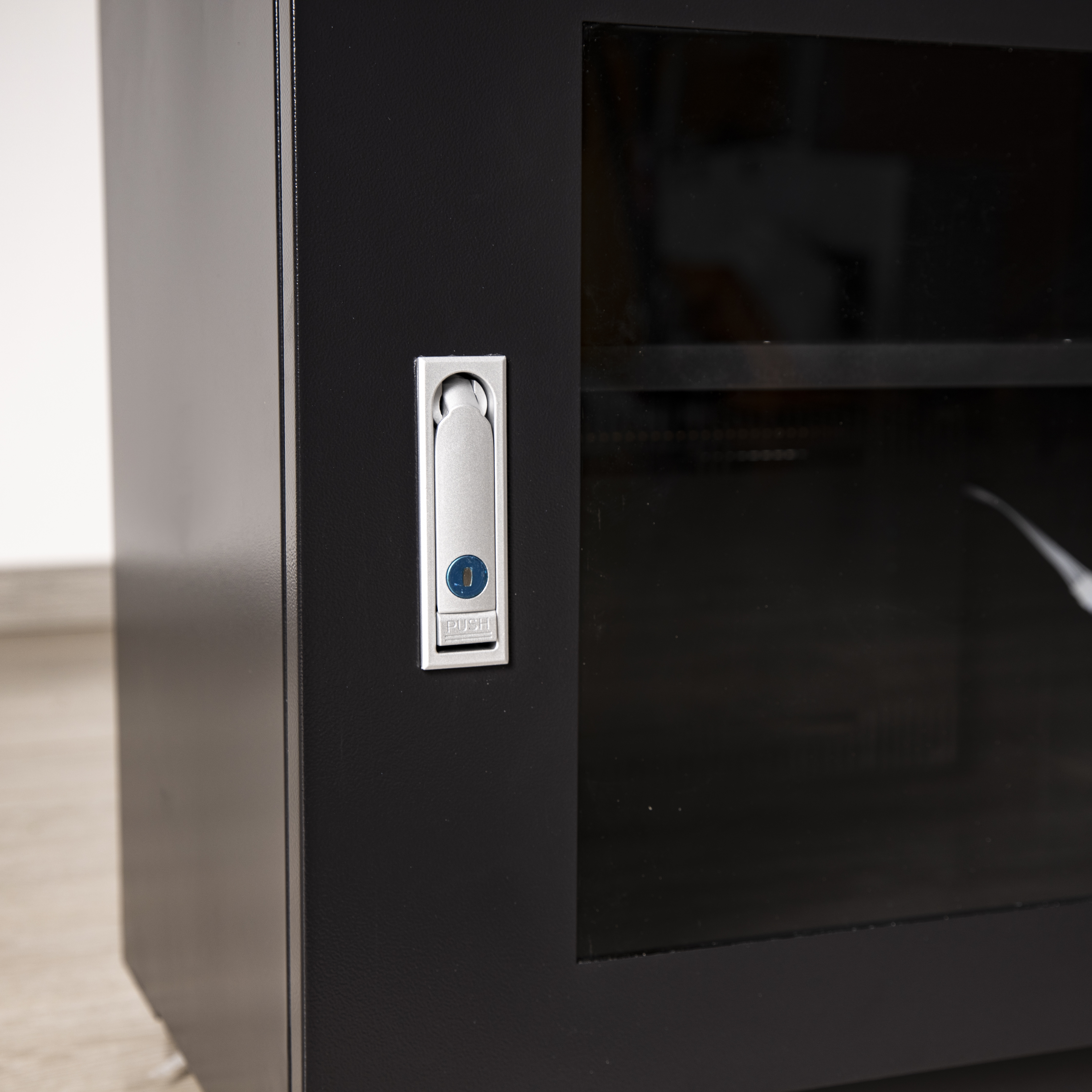

Cabinet door window: The frame window is pressed with 3.2mm high-strength tempered glass. The door handle adopts a flat pressure high-strength integrated handle lock with an anti-theft function.

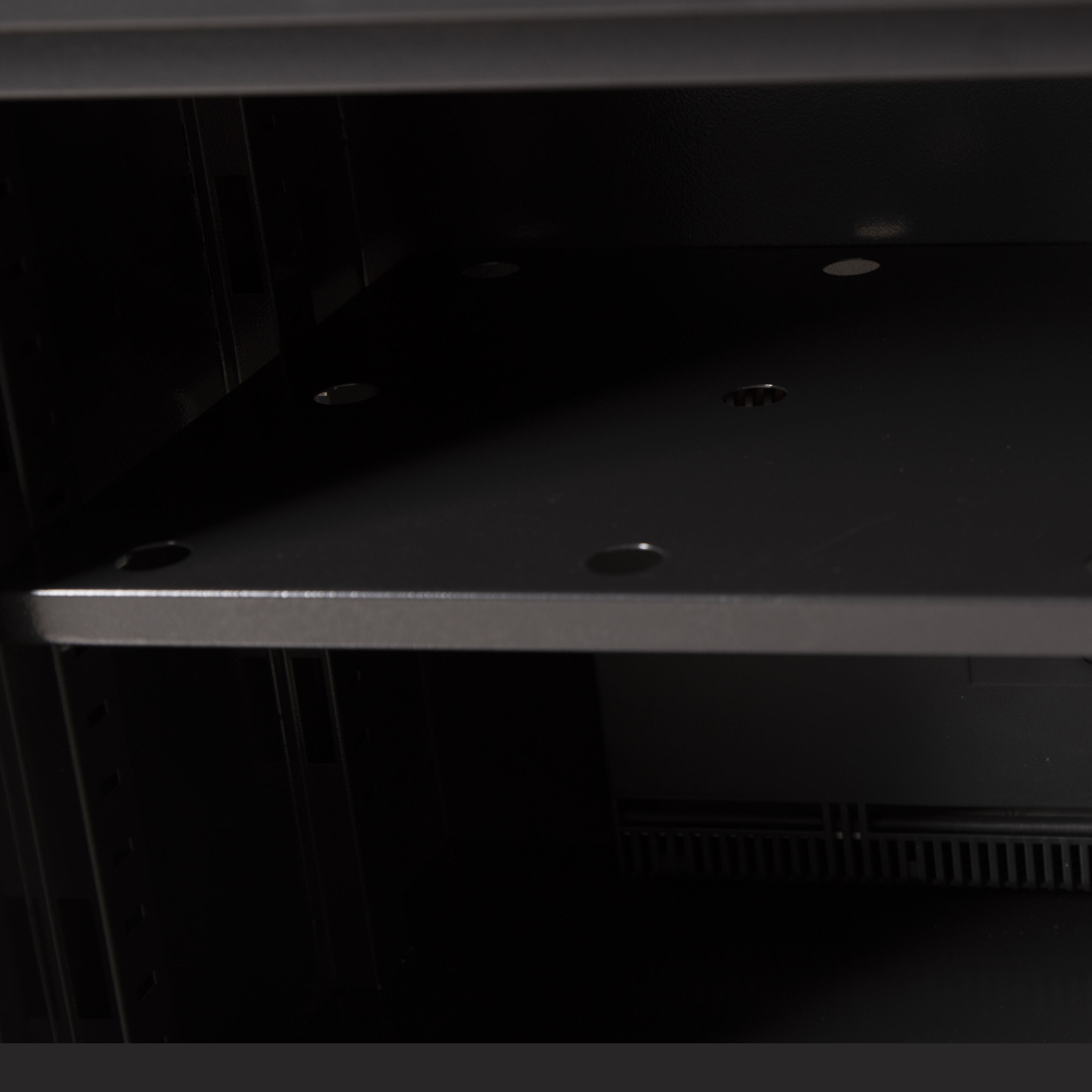

3.Load-bearing shelf

3.1 The surface of the load shelf is punched, the air in the cabinet is circulated faster.

3.2 The load shelf is designed to be strengthened and can bear a uniform load weight of 100 KG/piece.

3.3 The height gap can be adjusted according to the height of the items placed. Make it easier to store items and have higher space utilization.

4.Cabinet body

The cabinet is produced using Swiss-imported laser cutting, automatic punching machines, CNC shearing machines, bending machines, and other equipment with high manufacturing accuracy. OTC and Panasonic welding equipment are used to ensure good sealing of the welded cabinet.

5.Temperature and humidity sensor

5.1 Adopting Sweden's brand Sensirion high-precision humidity sensor with an error of less than ± 3% RH.

5.2 Designed with a dedicated acquisition module.

5.3 Adopting a modular concealed design to avoid extreme danger and ensure safety and reliability.

6.Digital display and accuracy

6.1 Adopting industry-leading high brightness digital full screen display, with temperature and humidity displayed separately. Digital display with host working status.

6.2 The dry cabinet has an accurate and stable display and a long service life.

6.3 The humidity setting has a memory function and does not need to be reset after power failure.

6.4 Temperature display: -9 ℃ ~ 99 ℃, accuracy ± 1 ℃.

6.5 Humidity display: 0%～99%RH, accuracy ±3%RH

7.Dehumidification system

7.1 Adopting imported polymer materials and dehumidification at room temperature.

7.2 The use of memory alloy with microcomputer program control and detachable maintenance design.

7.3 The main body shell uses imported high-temperature flame-retardant composite ABS materials.

8.Intelligent control system

Fully automatic microcomputer operation, no need for human supervision and without draining.

Product Upgrade

Adopting advanced module design concept and simple maintenance. The CNC module is designed with a host of expansion interface, which can easily upgrade the moisture-proof box for medium and low humidity.

Dehumidification Principle

The electronic moisture-proof dehumidification module adopts polymer environmentally friendly moisture-absorbing materials. It uses a shaped memory alloy system dehumidification method and unique patented technology. It has an intelligent microcomputer program control system. Just set the desired humidity control so that the device works automatically.

The module casing is made of high-temperature flame-retardant materials to prevent safety hazards. Power off automatic moisture absorption design, chemical moisture absorption compensation function can still be used to continue dehumidification. The humidity rise does not exceed 10% within 24 hours.
